RB26 Intake Manifold Titanium Stud Kit Installation Guide

Important detail please atleast read this section before skipping the install guide ðŸ˜†

There are two lengths of Dowels used on the intake between.
  • Throttle bodies and  Base Manifold SHORT DOWELS
  • Throttle bodies and Intake chamber LONG DOWELS
If these are mixed up you will have throttles that cannot seal on the base manifold correctly and will give idle control issues

Introduction:

This stud kit is designed to replace the factory hardware which secures the intake manifold and throttle bodies to the base manifold.

Extra info and terminology

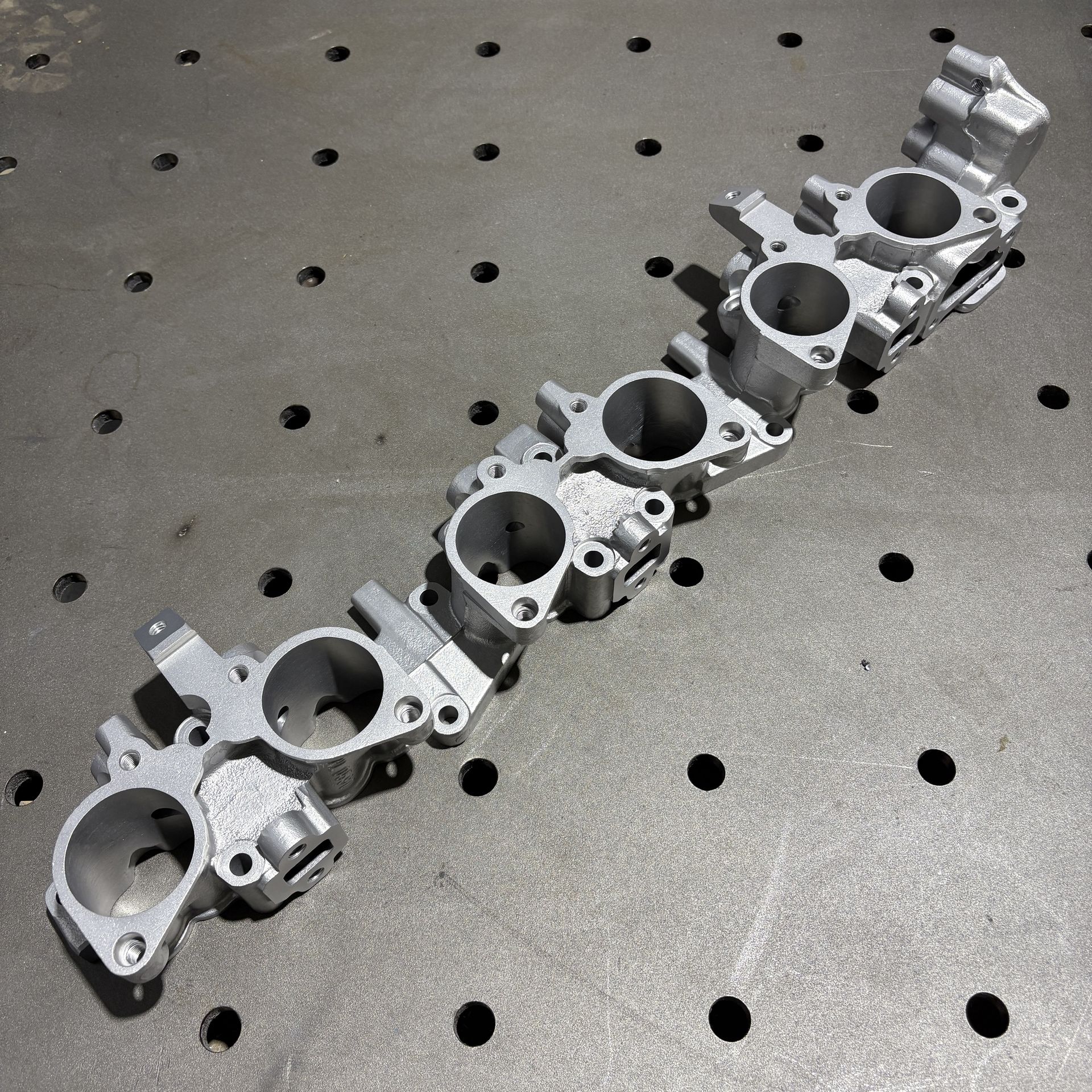

Base Manifold

RB26 Base Manifold
This is the manifold which is secured to the cylinder head of the RB26.

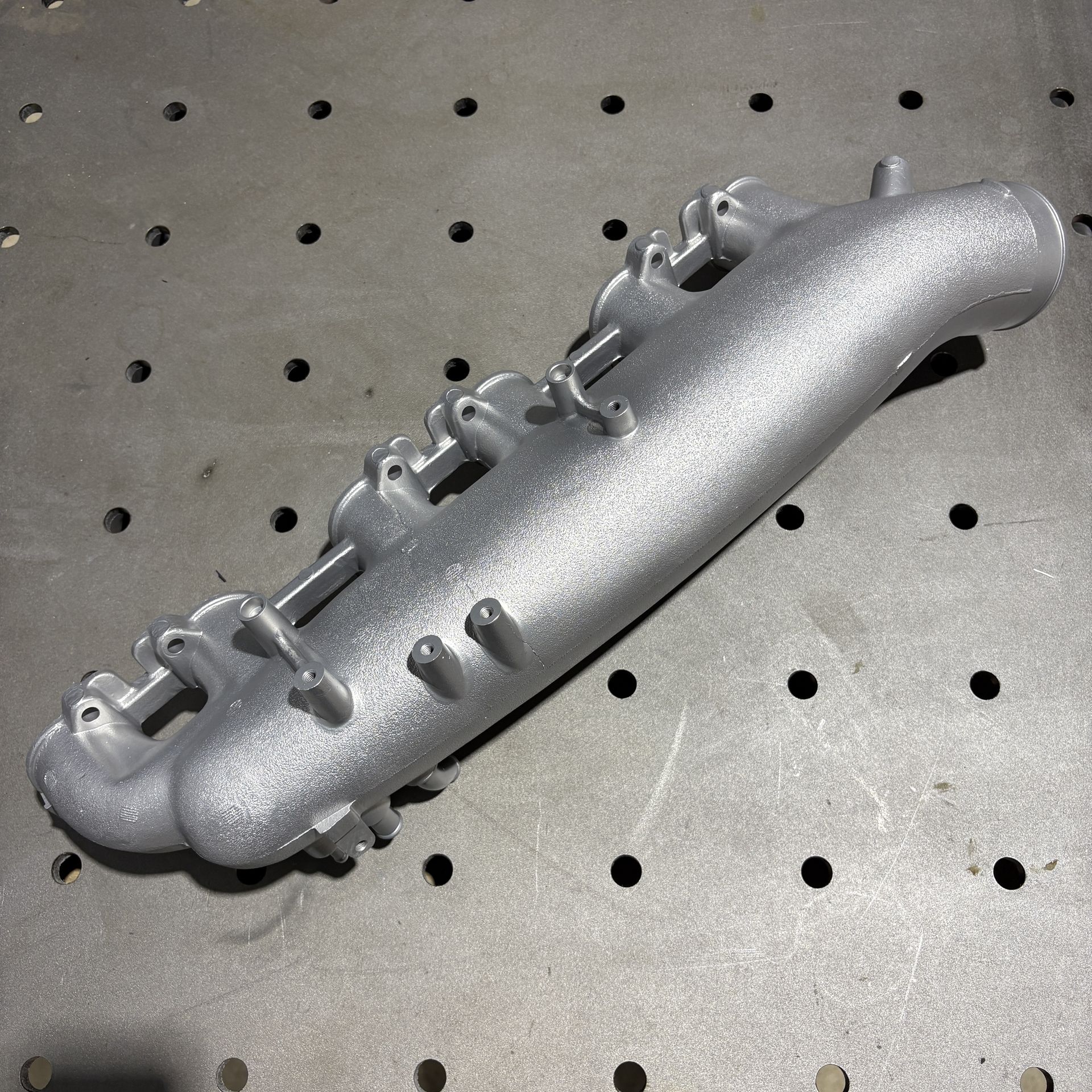

RB26 Intake Manifold

RB26 Intake Manifold - Otherwise known as the plenum which is part of the intake system.
Otherwise known as the plenum which is part of the intake system.

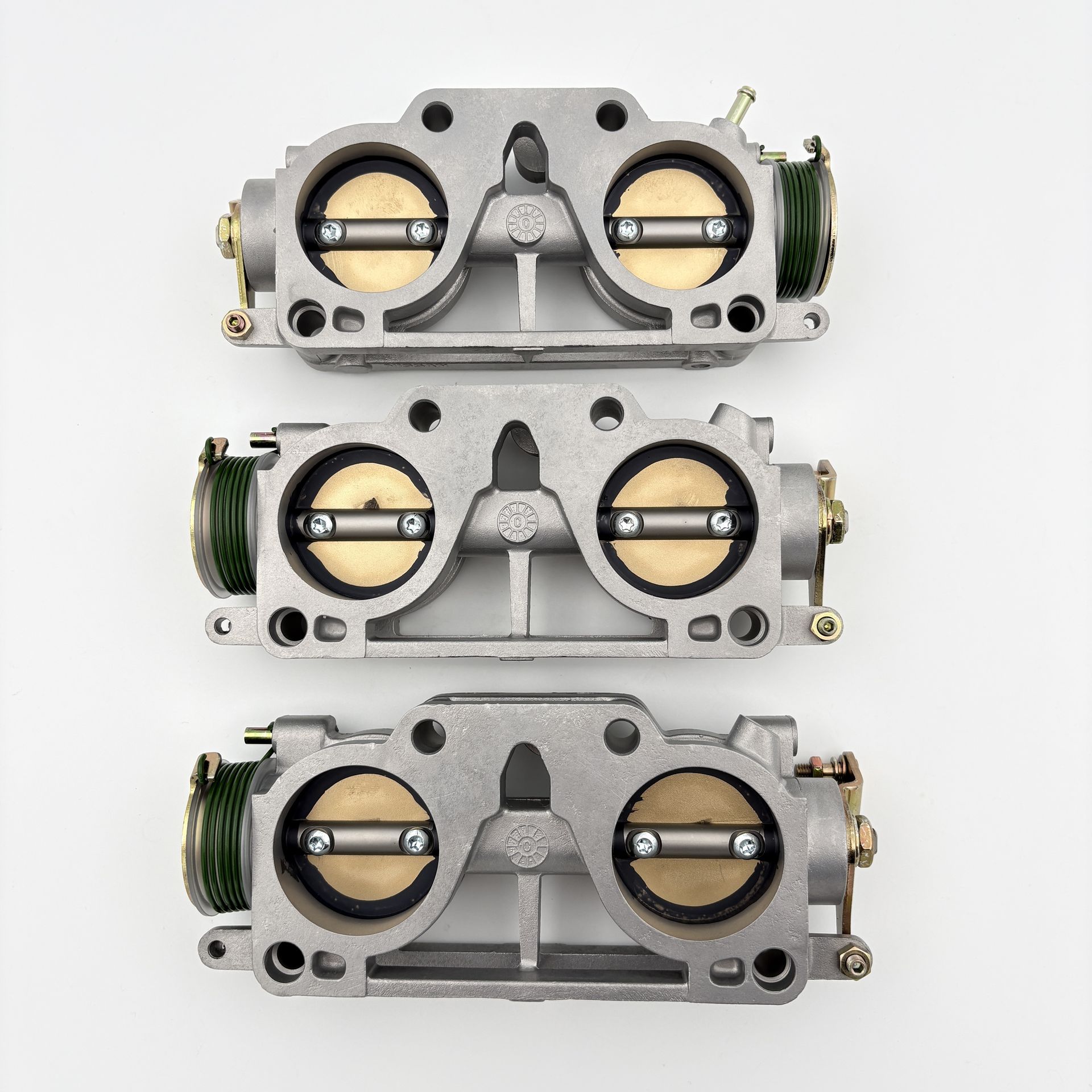

Throttle Bodies

Throttle Bodies - These are the 3 individual throttles which are located between the intake manifold and base manifold
These are the 3 individual throttles which are located between the intake manifold and base manifold

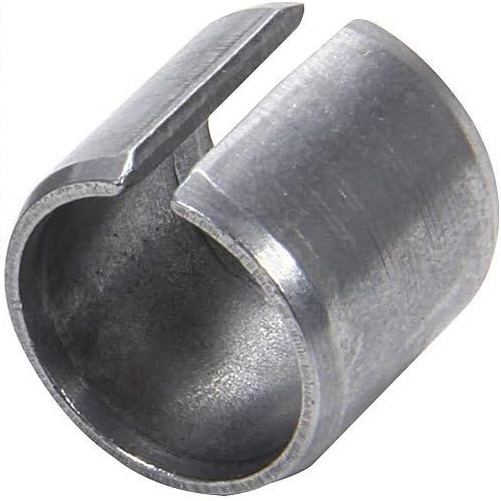

Dowels

Short and Long Dowels are located between
  • Short Dowels - Between Throttle Bodies and Base Manifold
  • Long Dowels - Between Intake Manifold & Throttle bodies

Installation Steps

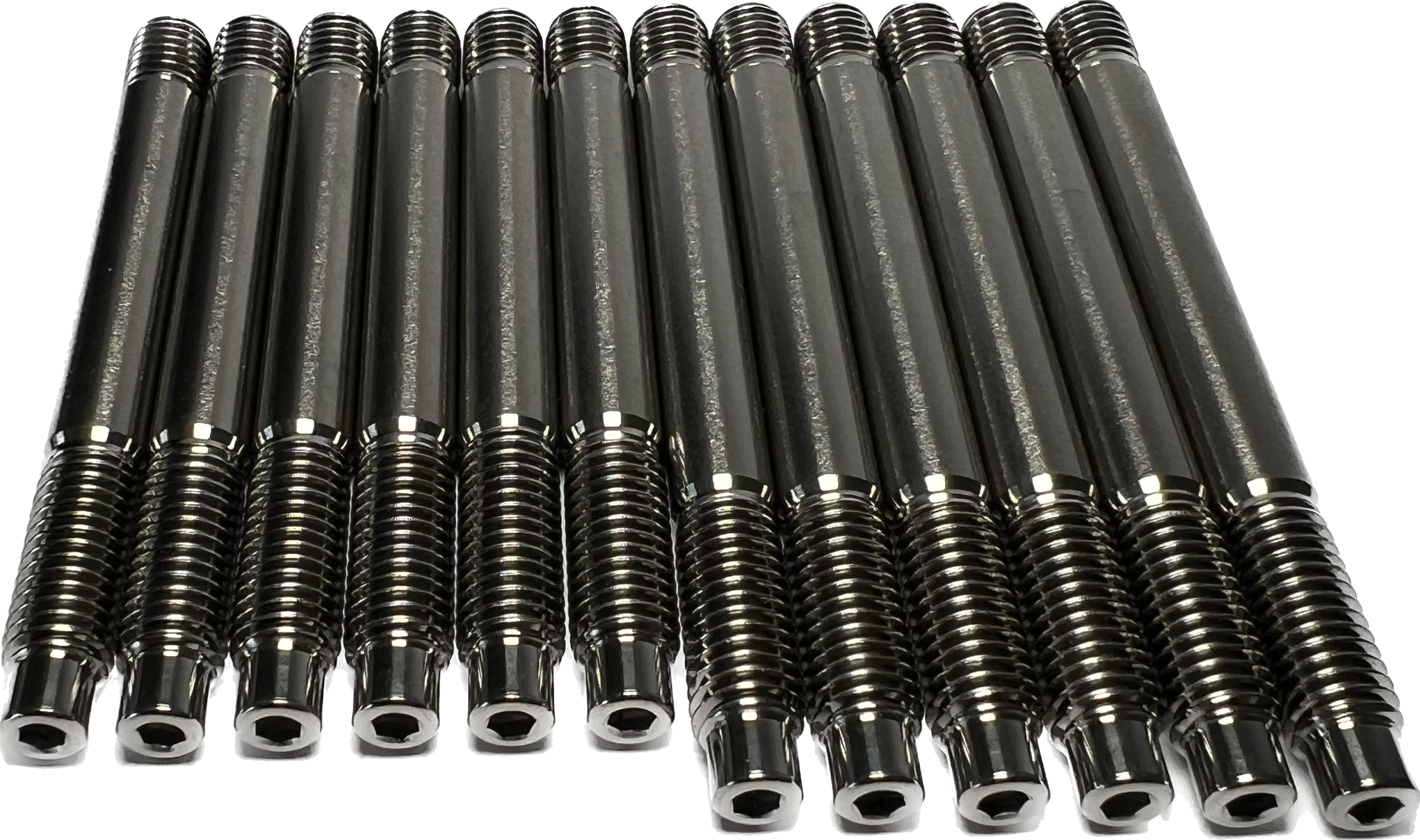

Step 1: Lay out long studs & short studs as pictured below.

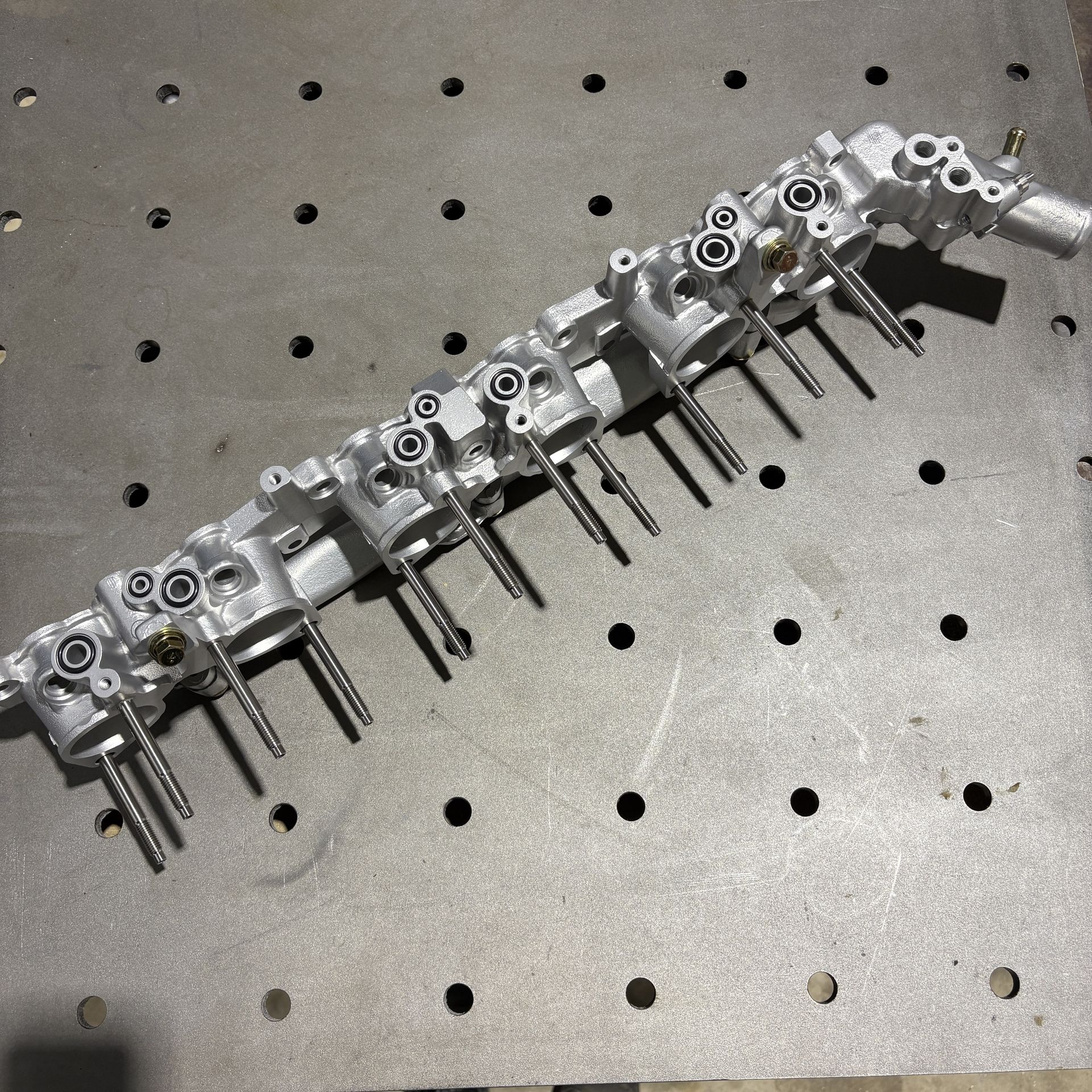

Step 2: Fit all the studs in the locations displayed in the images below, The studs only need a very lightly tightened with a 3mm allen key/wrench once they bottom out in the threads.

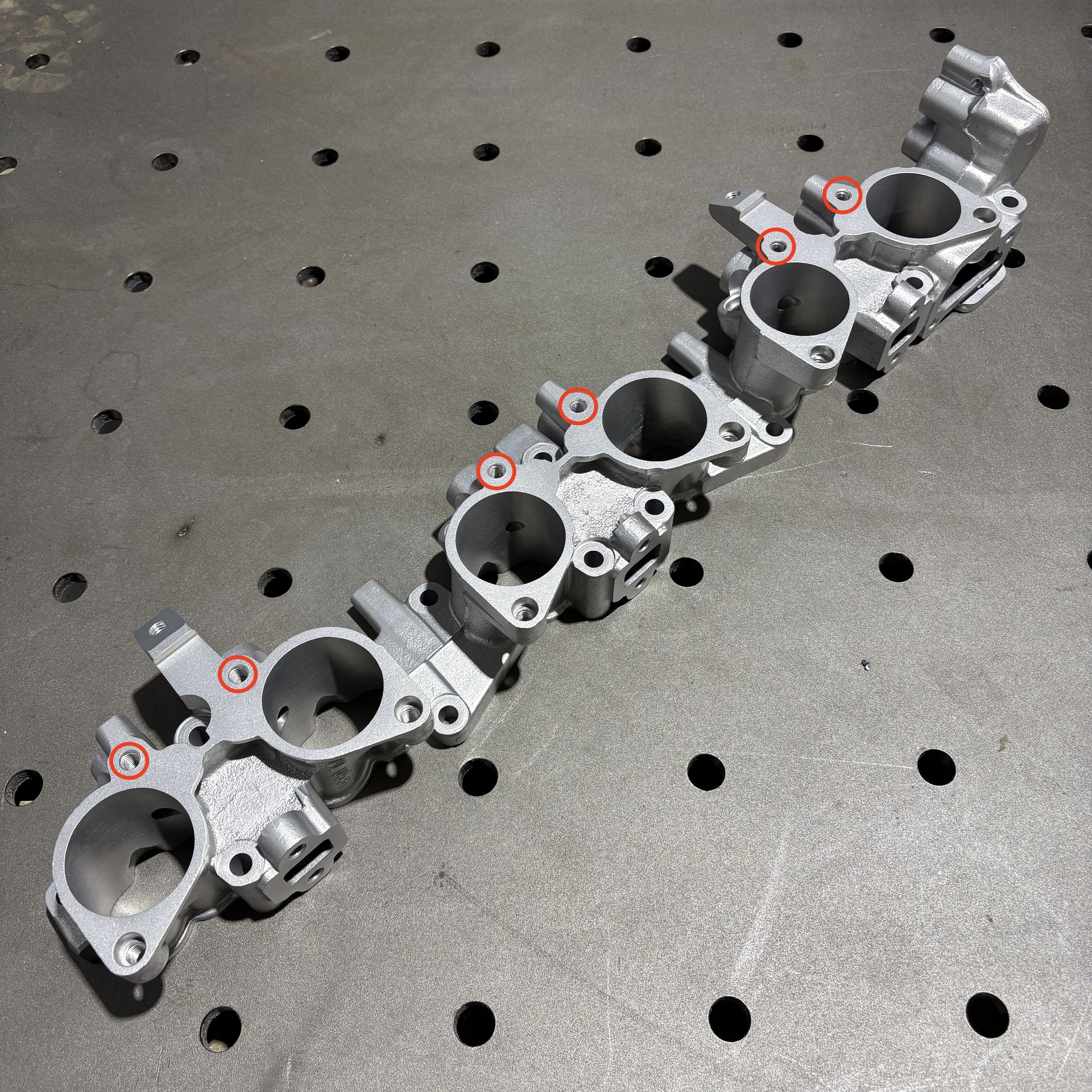

Step 3: Fit the short studs in the top row of the base manifold

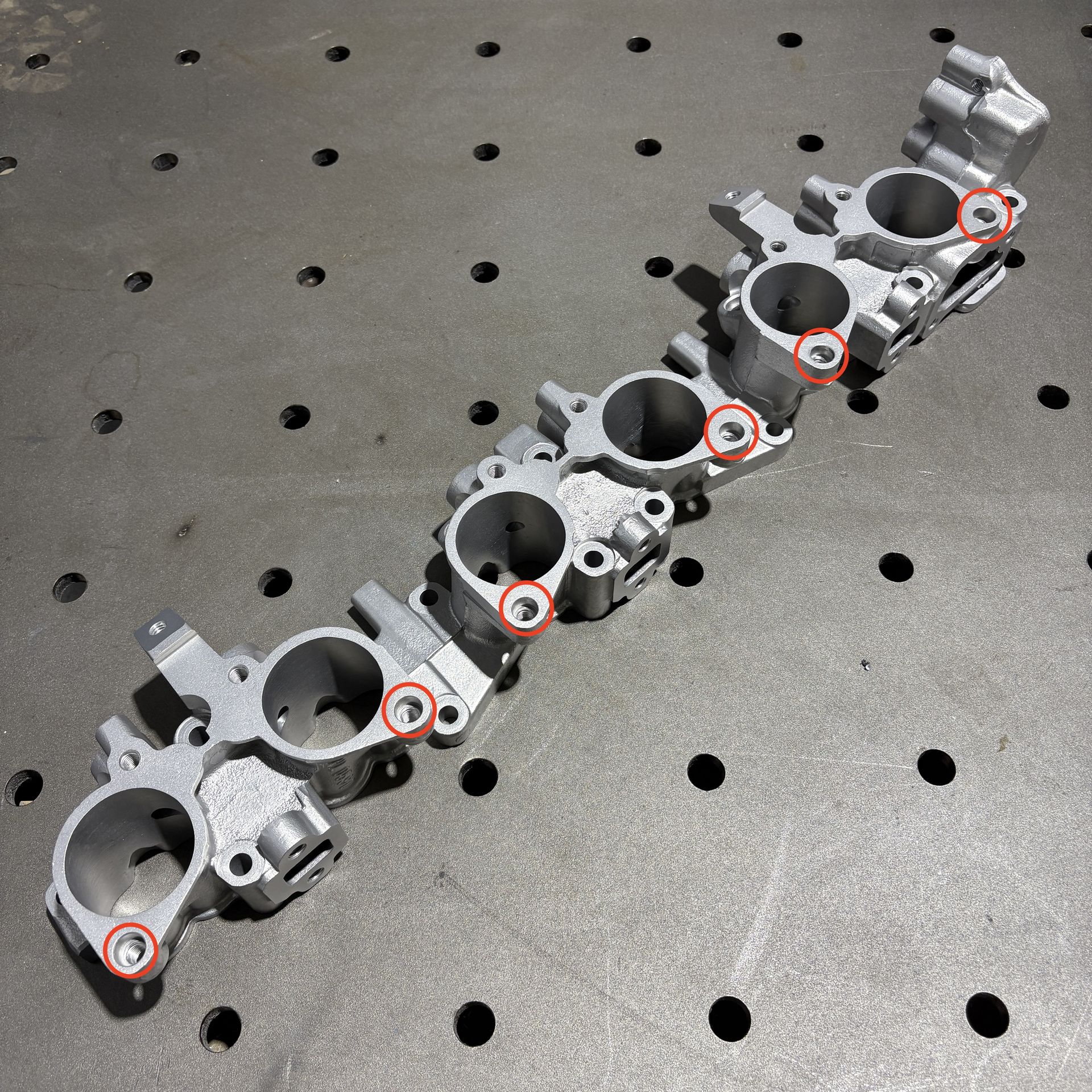

Step 3: Fit the long studs in the bottom row of the base manifold
Step 4: Layout your dowels, ensure you have
  • 6 long dowels
  • 6 short dowels
Step 5: Refit the short dowels the the bottom row of the base manifold where the longer studs were just fitted. Refit throttle bodies and gaskets etc
Step 6: Refit the long dowels to the throttle bodies, add your gasket and intake chamber, Titanium Washers and Nuts can now be tightened.

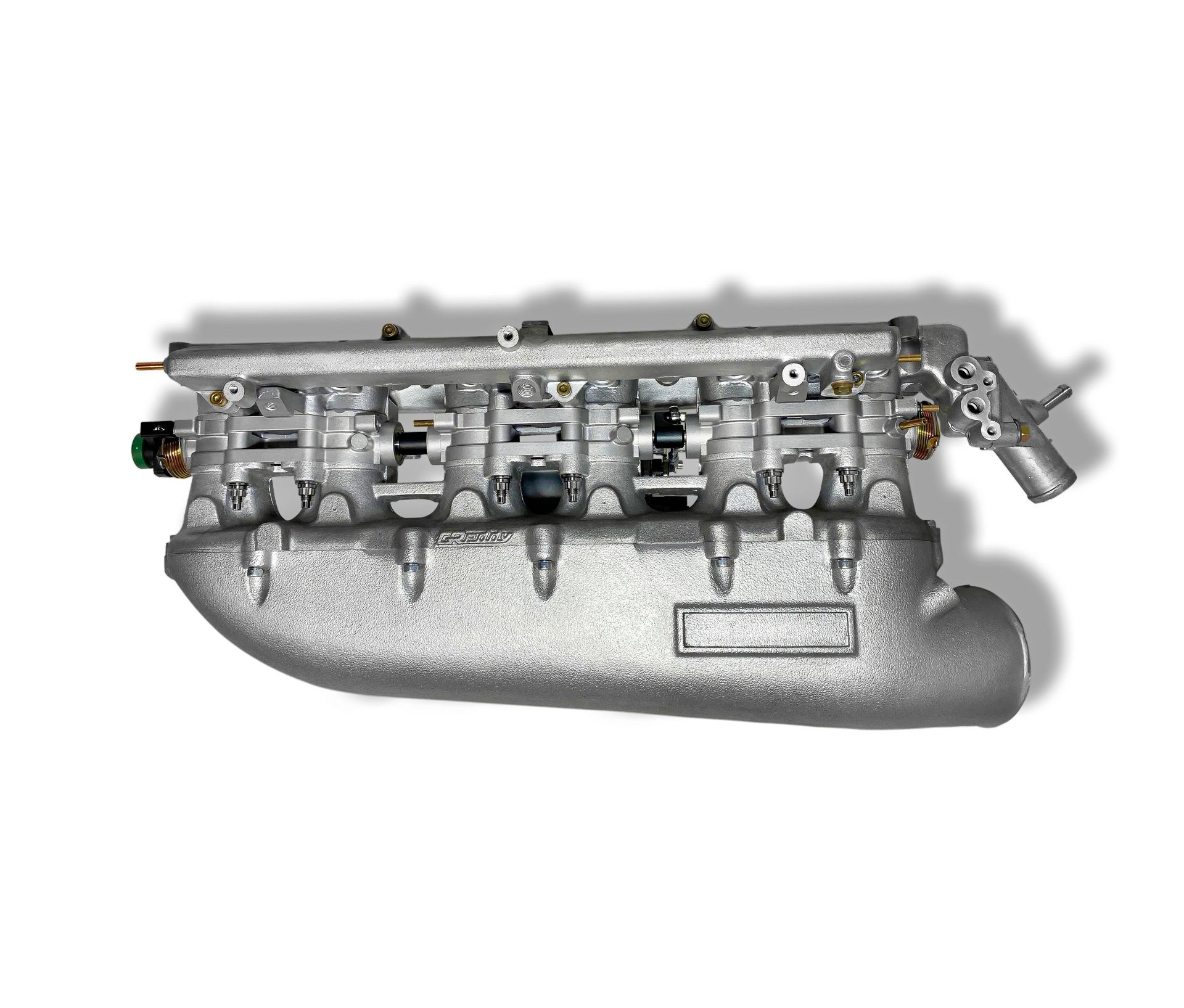

Your intake should look something like this now!
Greddy RB26 Intake With Titanium Stud Kit
