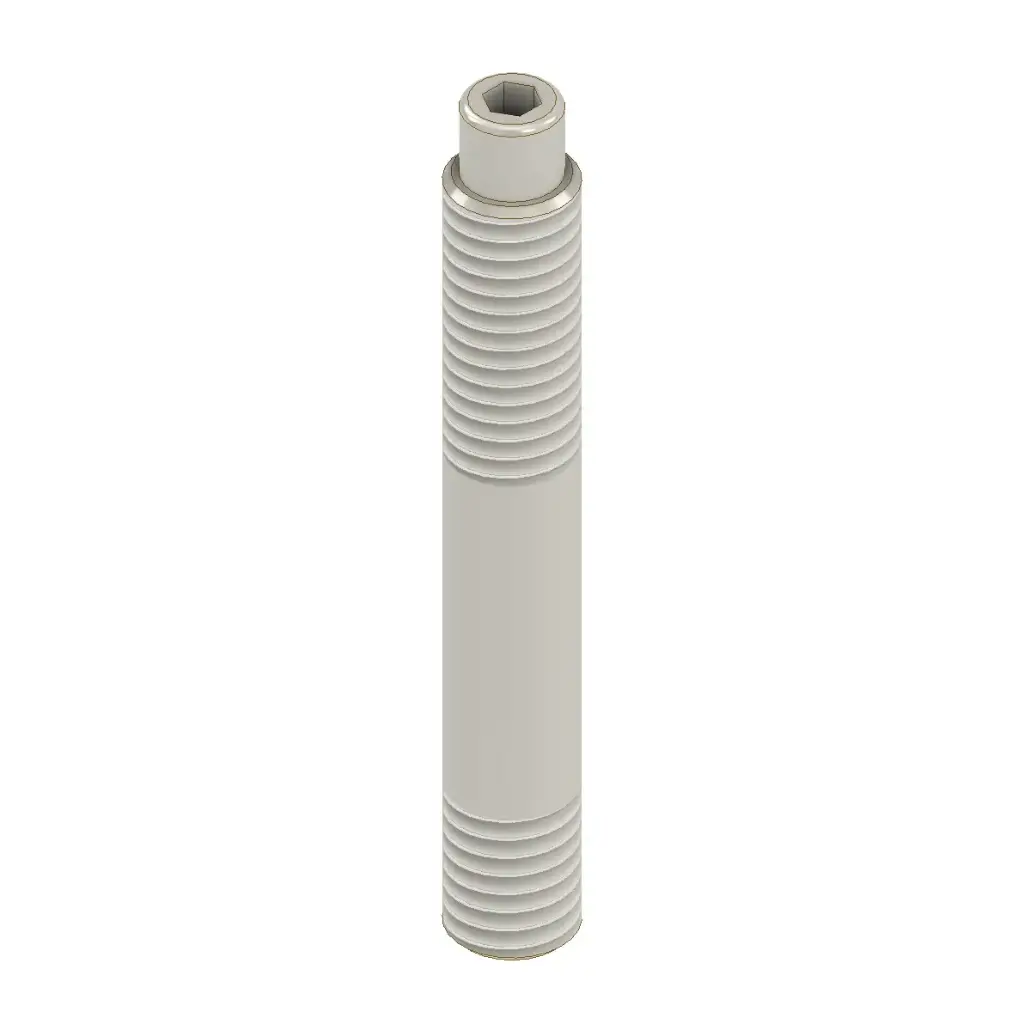

Titanium Stud Bolt | Nipple Head | Hex/Allen Key Drive | M8 * 1.25mm RH Thread | Grade 5 ISO Polished
Manufactured on Demand, These studs are not stocked articles.
Key Specifications:
- Head Type: Nipple with Hex/Allen Key Drive
- Thread Size: M8
- Pitch: 1.25mm
- Thread Rotation: RH Thread
- Material: Titanium (Ti-6Al-4V)
- Finish: Polished

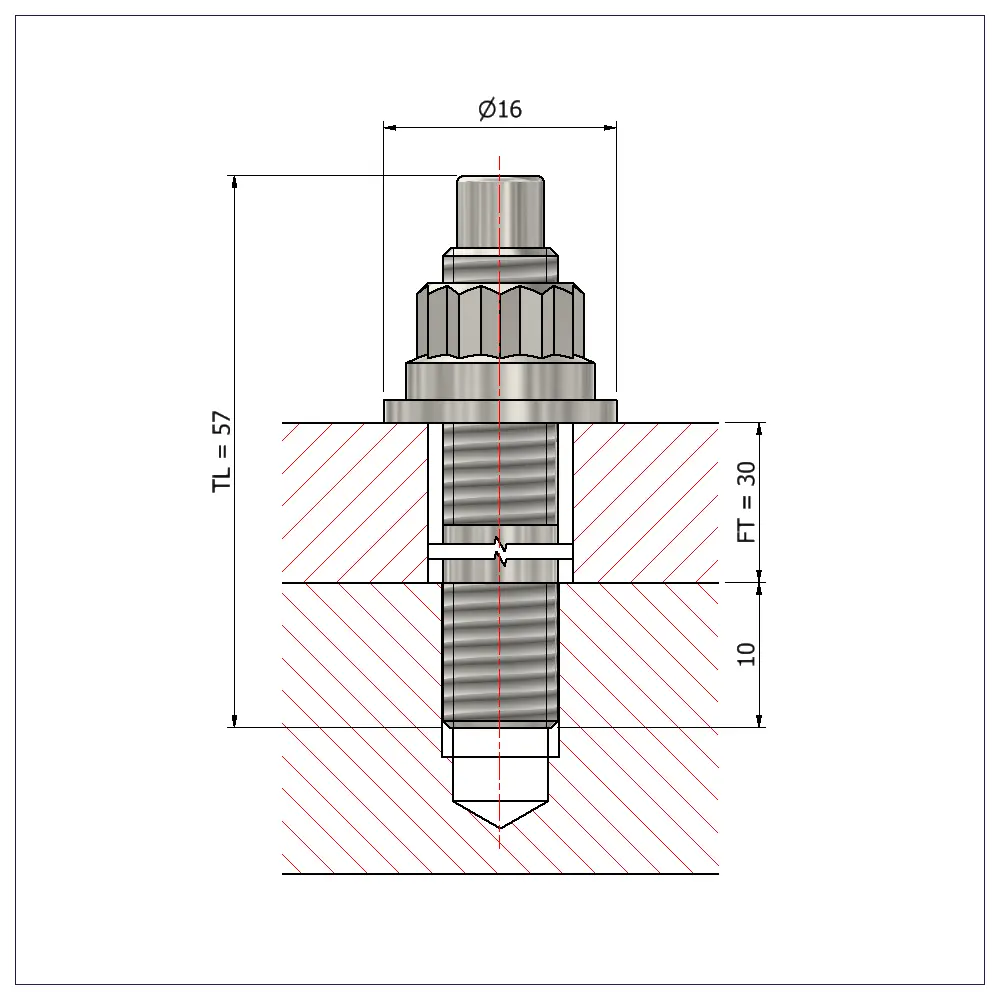

- FT: Flange Thickness ( Measured With Washer & Nut as per Images Stud Length Measuring Guide )
- TL: Total Length ( Can be calculated by taking the fixed length of 27mm and adding the flange thickness you require, see photo on listing 27 + FT 30 = TL 57mm )
What’s Included
- 1x Titanium Stud
Sold Separately ( Scroll Down To See Alternative Products )
- Titanium Washers
- Titanium Nuts
Why Choose Our Titanium Studs?
- FT or Flange-Thickness Specific Sizing - No more guesswork! We provide the flange thickness dimension that our studs suit, meaning all you need to do is accurately measure your Flange & Gasket Thickness & Dowel Hole Depth if one is present, Add those figures up and then select the flange thickness! It doesn't get much easier than that!
- Premium Grade 5 Titanium - Superior strength-to-weight ratio and excellent corrosion resistance.
- ISO Standard Manufacturing
Ideal for motorsports, aerospace, marine, and high-performance applications where weight savings and durability are critical.
Don't see the Size, Pitch, or Material Grade your after? no problem, get in touch and let us know what your specific requirements are.
| Thread Diameter: M8 |
| Thread Pitch: 1.25mm |
