Titanium Hardware

Why Choose Our Titanium Studs?

  • FT or Flange-Thickness Specific Sizing - No more guesswork!

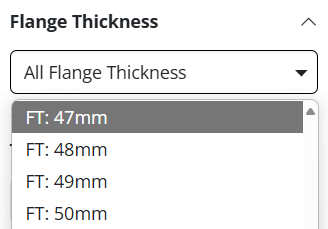

Our stud range flange thicknesses are pre calculated, meaning we have a fixed thread depth for example 10mm on a M8 Stud into a cylinder head, we then use a nut and washer and always have those at a fixed depth of the top face of the stud, this method allows us to simply give our range of studs a FT = Flange Thickness dimension, therefore you can easily just measure your Flange Thickness, Gasket Thickness & Dowel Hole Depth if one is present, Add those figures up and then select the flange thickness you require via the convinient filter in the shop! It doesn't get much easier than that!

  • Premium Grade 5 Titanium - Superior strength-to-weight ratio and excellent corrosion resistance.
  • ISO Standard Manufacturing

Ideal for motorsports, aerospace, marine, and high-performance applications where weight savings and durability are critical.

Don't see the Size, Pitch, or Material Grade your after? no problem, Contact Us now with your specific requirements.

Stud Length Measuring Guide

Follow the guide below to work out how much extra length you require for your stud which has a dowel recess.

Step 1.

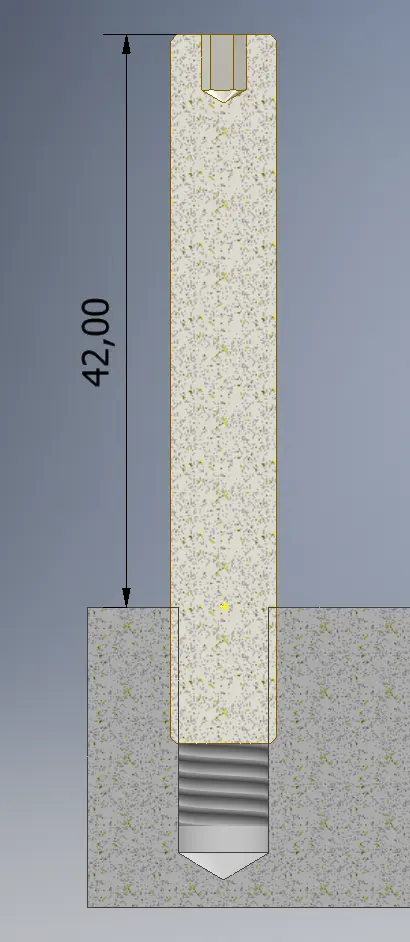

 Fit a stud till it bottoms out in the normal hole WITHOUT DOWEL, Now measure the length from the top of the stud to the base or mounting face.



Step 2.

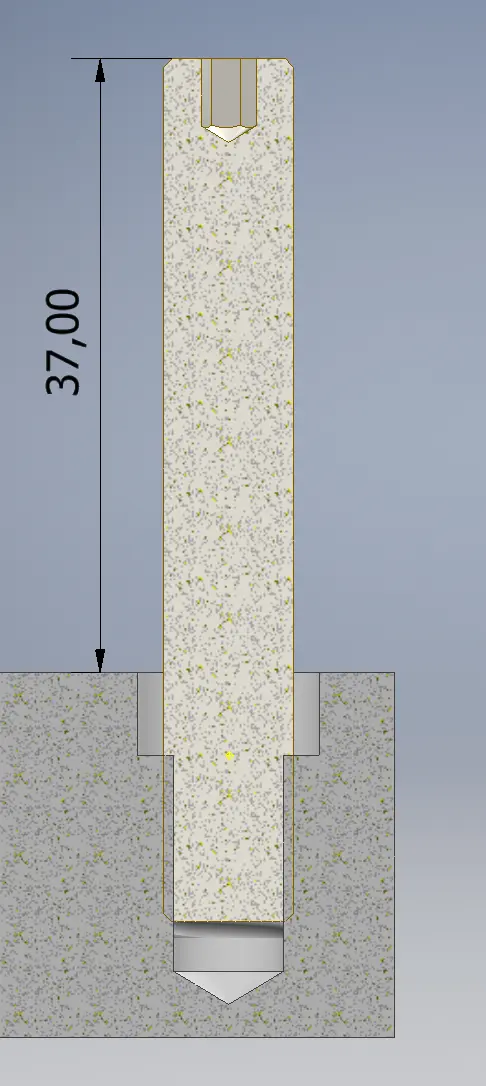

Fit a stud till it bottoms out in the hole WITH DOWEL RECESS, Now measure the length from the top of the stud to the base or mounting face.

 Step 3.

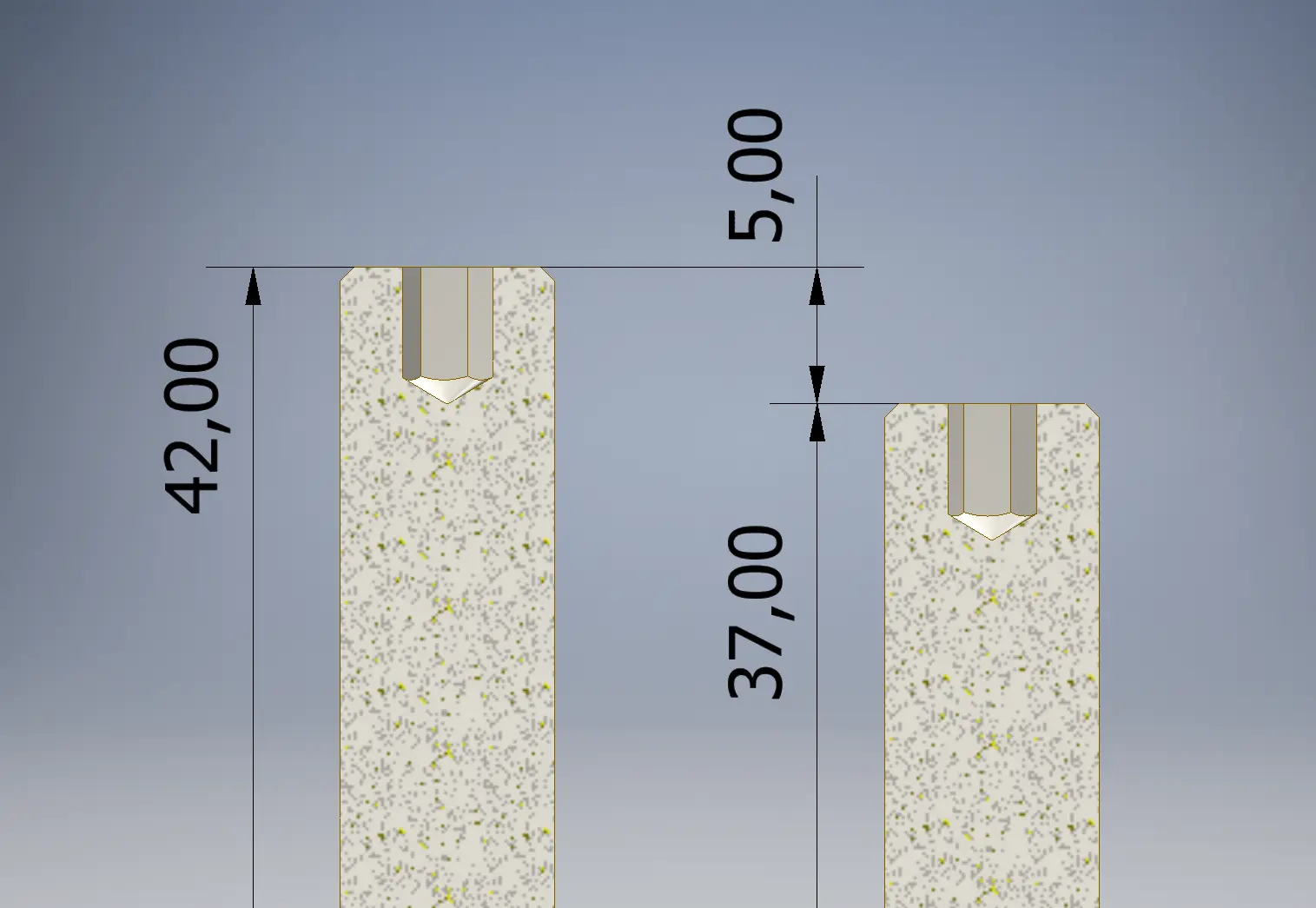

Take the dimension from step 1 eg. 42,00mm and subtract dimension from step 2 eg. 37,00mm, this will give you your dowel hole depth of 5,00mm, add this value to the studs which are fitted into holes that have dowels during your order.



General Hardware Information

More info such as torque specs coming soon, Total Lengths etc
