DEUTSCH ~ AMPHENOL Mounting Clip 132pc Pack
Bulk Pack
Video & Images of Grey Clips ( Shows the product in its initial release, we use Black Henkel Loctite 3D Resin now & a slightly different improved design as stated in the specs below )

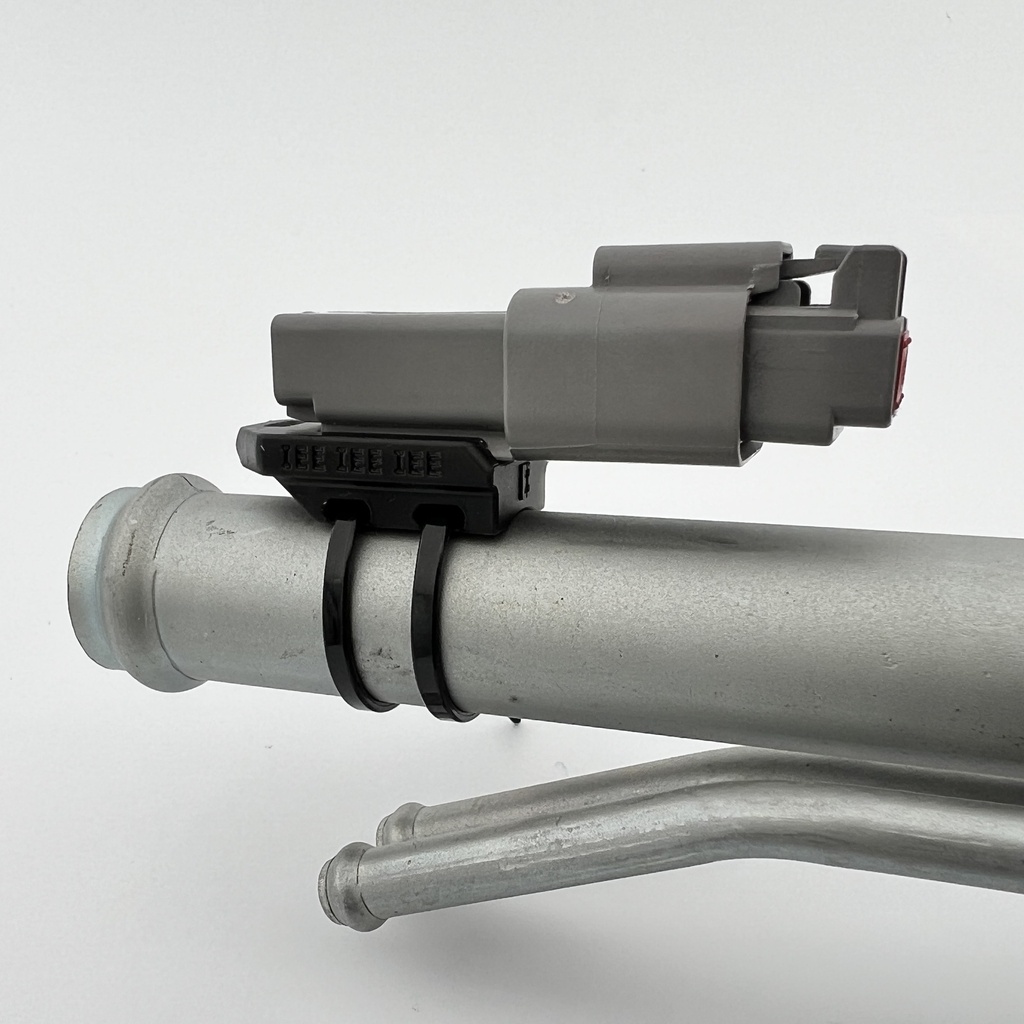

This mounting solution is made to suit tubes, hoses & harnesses as per photo the example of a 19mm heater Tube being used to cable tie the Mounting Solution to, this enables the user to clip in the connector and have a rigid and tidy fitment.
The sizes available are 5mm 10mm 15mm 20mm 25mm 30mm 35mm 40mm 45mm
We recommend using the mounting clip size under whatever the diameter you are using the clip on, Eg. you have a 19mm tube, so you would ideally use a 15mm Mounting Clip
Fits the following DEUTSCH ~ AMPHENOL connectors
DTP ~ ATP 2, 4
DTM ~ ATM 2, 3, 4, 6, 8, 12
DT ~ AT 2, 3, 4, 6, 12 ( DT ~ AT 8 doesn't fit )
Specs
- 3D Resin printed
- Material Loctite IND406
- Heat Deflection Temperature 105 Deg C
- Best suited for inner room wiring harnesses less exposed to heat, direct exposure to high heat sources will cause shortened life span of part, just like any plastic electrical item or wiring harness.
