RB26 ITB Cable Actuated Throttle Kit

RB26-ITB Cable Actuated Throttle Kit

Upgrade your RB26 individual throttle body (ITB) setup with our cable-actuated throttle conversion kit. This kit is designed for those switching to a trumpet-style intake and requires an aftermarket ECU for operation.

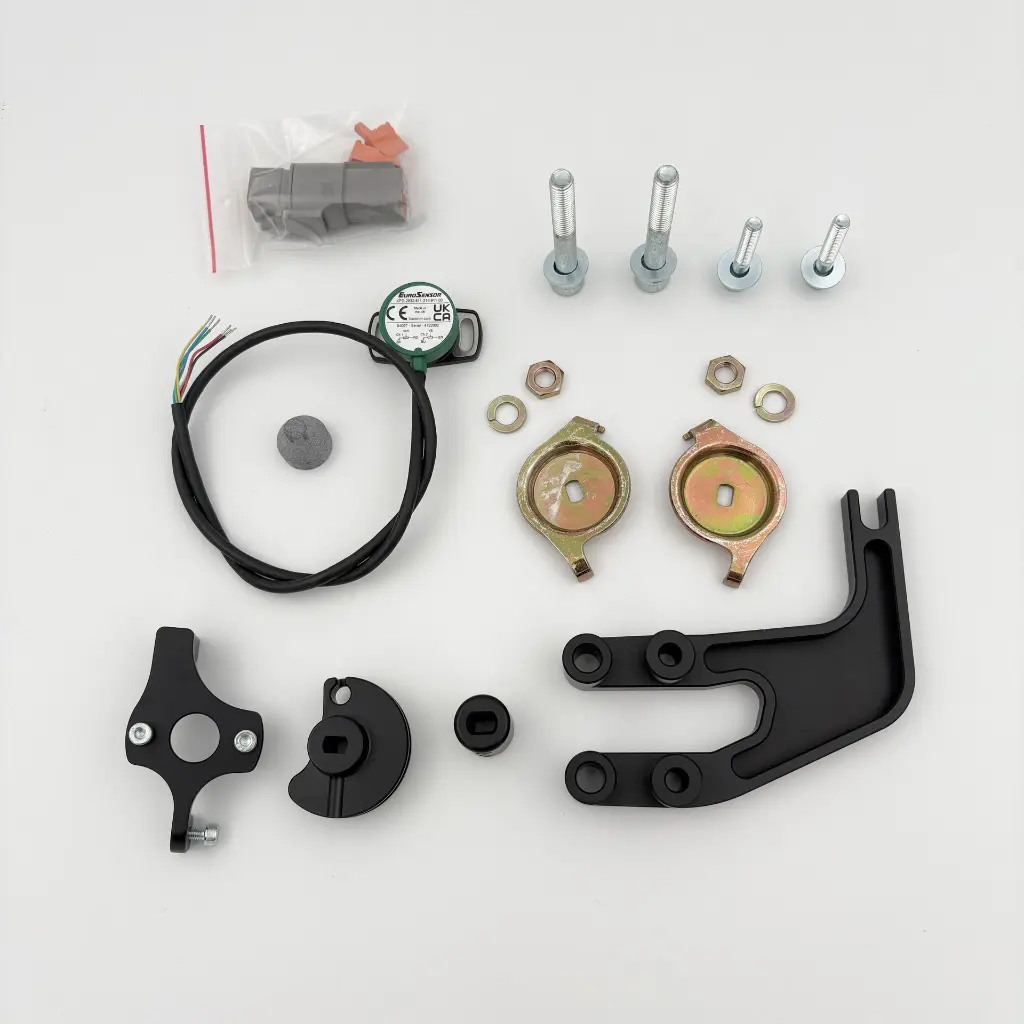

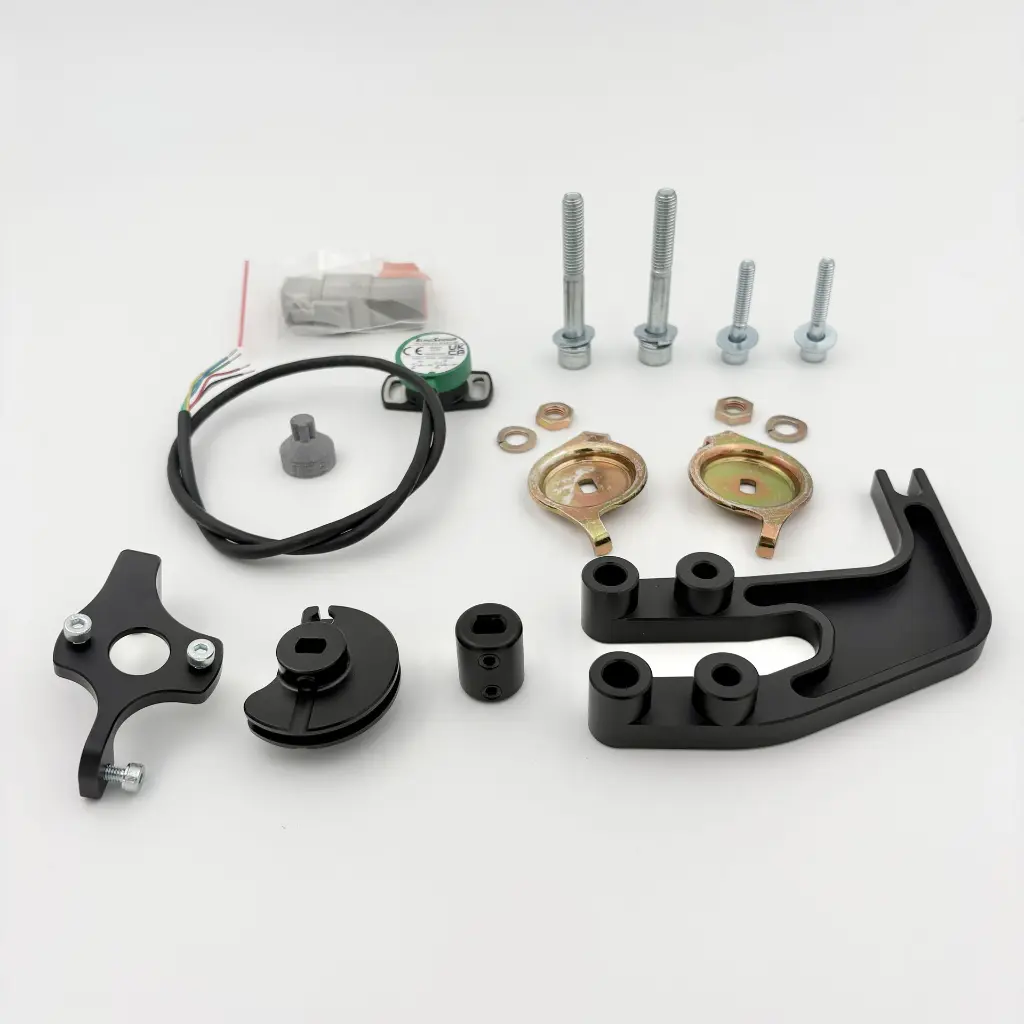

Included Components:

• Rear Throttle Cable Reel – Connects the rear two throttle bodies, integrating a precision-machined cable reel

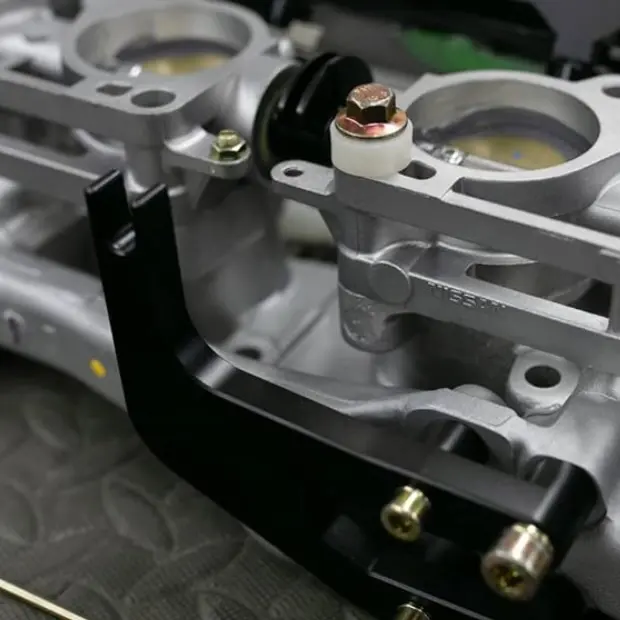

• Throttle Cable Holding Bracket – Securely mounts underneath the water manifold on the RB26 intake.

• Front Throttle Body Connector – Joins throttles one and two with a straight throttle shaft connector

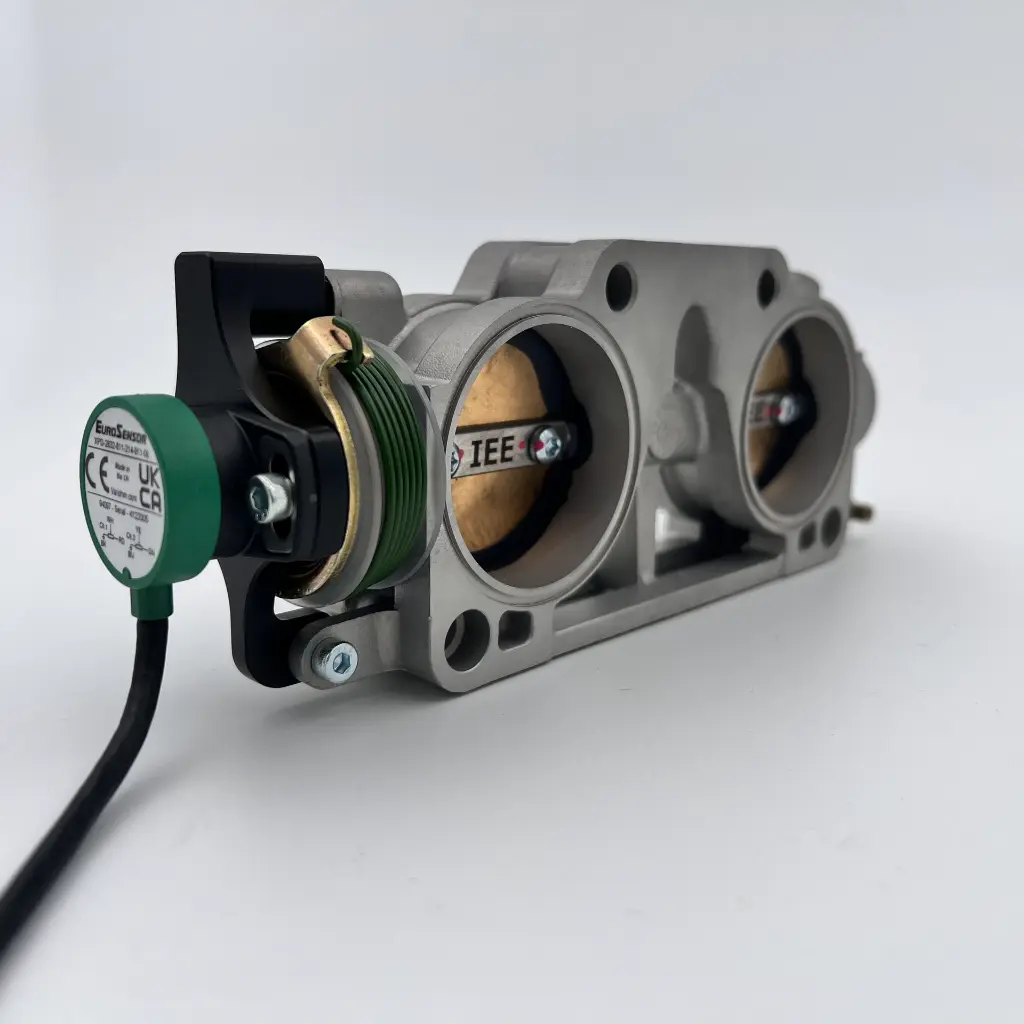

• Variohm Throttle Position Sensor (TPS) Kit – Variohm 110-degree TPS kit with drive key and a six-pin DTM Deutsch connector engine management integration.

• Rear Throttle TPS Mounting Bracket – Variohm sensor used this mount to be fitted the the rear throttle body on the RB26

• Throttle Body End Plates with back stops These are required to set the closed position of the throttles

• Complete Mounting Hardware – All fasteners needed for installation of parts in this kit.

Additional Recommendations:

• Aftermarket idle control valve – for precise control of the idle via the ecu at low rpm when the throttles are shut.

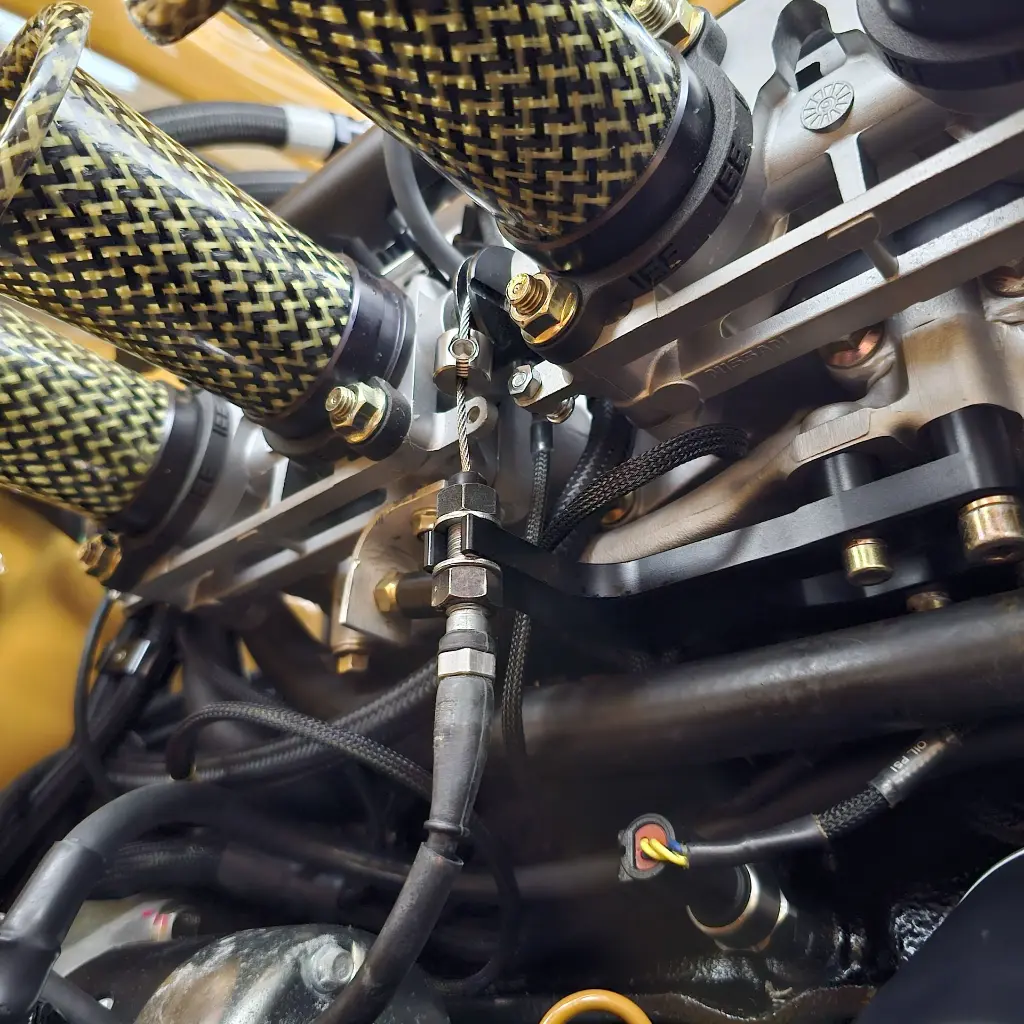

• Photo 2 shows a throttle cable stopper – this is not included, customers must source this locally, this is to limit the cable pulling range.

Image credit to @Rvae38

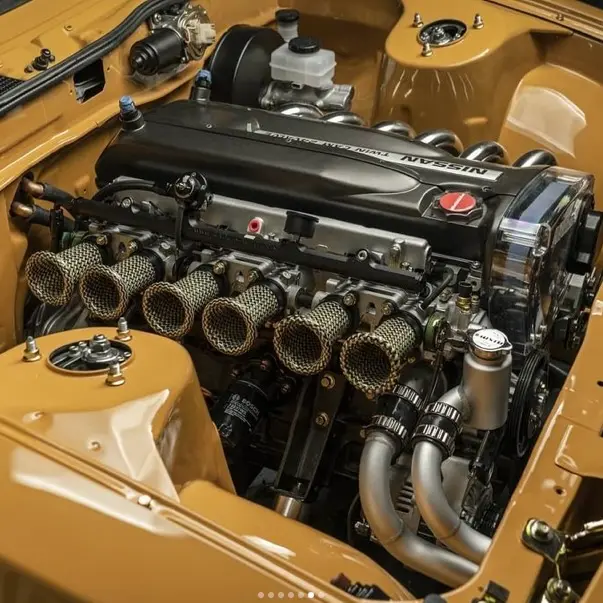

This incredible z31 300zx NA RB has attended Sema show sporting our ITB Cable Kit and has even been featured in #Speedhunters!
