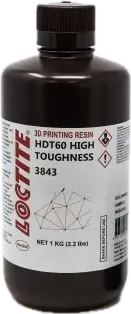

LOCTITE 3D 3843
A durable, rigid resin with properties similar to ABS, producing parts with an outstanding surface finish and good dimensional stability. It is a workhorse material suitable for a wide range of general-purpose prototyping and functional part applications.
Best for: Form, fit, and function prototypes, enclosures, and consumer goods.
Specifications:
Note: (TS) refers to the Testing Standard used to measure the specified value.
Color: Matte Black / Clear / White / Gray (TS: N/A)
HDT at 0.455 MPa: 63 C (Black), 60 C (All Others) (TS: ASTM D648)
Tensile Stress at Break: 43 MPa (Black), 44 MPa (Clear), 48 MPa (White/Gray) (TS: ASTM D638)
Elongation at Break: 43% (Black/Gray), 41% (Clear), 48% (White) (TS: ASTM D638)
Young's Modulus: 1,700 MPa (Black/Clear), 1,900 MPa (White), 1,800 MPa (Gray) (TS: ASTM D638)
Flexural Modulus: 1,900 MPa (Black/Clear), 2,000 MPa (White/Gray) (TS: ASTM D790)
IZOD Impact (Notched): 65 J/m (Black/Clear), 55 J/m (White/Gray) (TS: ASTM D256)
Shore Hardness: 82 D (Black/White/Gray), 80 D (Clear) (TS: ASTM D2240)
| Heat Deflection Temperature: Standard (< 65°C) |
| Primary Property: Tough & Durable |
