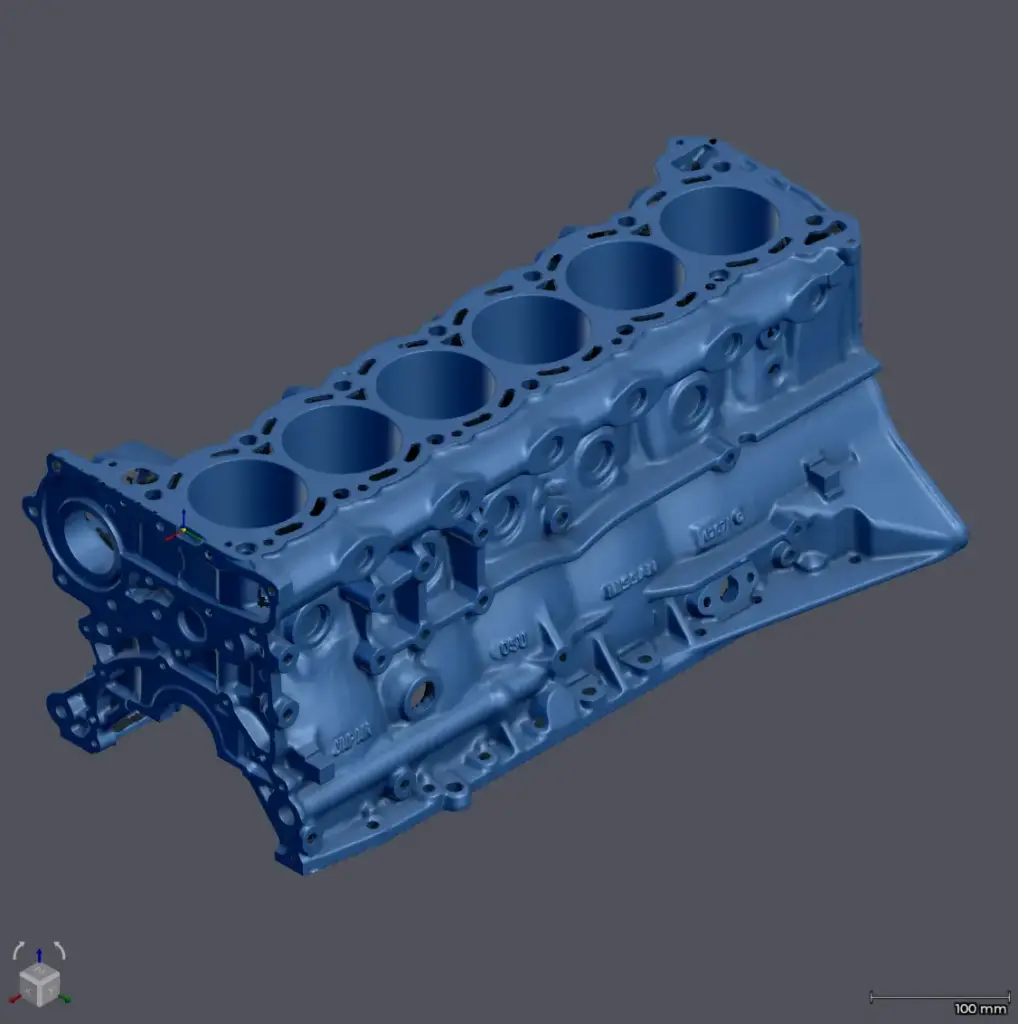

RB26 05U BARE ENGINE BLOCK 3D Scan Data (One-Off License)This product is a high-accuracy 3D scan dataset of an RB26 Engine Block, supplied under a one-off license for use by the purchasing customer only. Each dataset contains a unique identifier embedded within the file.
Scan Data Specifications
- Scanned with: Creaform HandySCAN 700 Silver Edition
- Accuracy: Up to 0.030 mm (30 microns)
- Mesh Resolution: 0.60 mm
- File Format: STL
- Applications: Reverse engineering, CAD modelling, manufacturing, and digital archiving
Scan Coverage & Important Limitations
Please review all product images carefully before purchasing.
3D laser scanning is a surface capture process. The scanner records visible external surfaces only and does not function as an X-ray, CT scanner, or other internal imaging system.
Areas of Potentially Reduced or Missing Scan Data
The following areas may contain reduced or missing scan data due to limited scanner line-of-sight access:
- Areas under webbing inside block where the crankshaft lays
- Undercuts around the sump flange on the inside of the block
- Oil Squirted areas.
- Hidden internal passages
- Deep recesses and undercuts
Refer to the product images for detailed scan coverage.
Terms of Use
By purchasing this 3D scan data, you agree to the IEE 3D Scan Data License Agreement.
Redistribution, resale, file sharing, or transfer to third parties is prohibited. A unique identifier is embedded within each dataset to assist with license compliance and traceability.
Additional Information
- The scan data has been fully processed and is supplied as a ready-to-use STL mesh.
- Contact us if you require CAD conversion, surface modelling, feature extraction, or additional processing services.
- Scan data is supplied as captured and processed. It is the purchaser’s responsibility to verify dimensions and suitability for their intended application.
- This product is supplied as digital data only. No physical item will be shipped.
