Universal Drive By Wire (DBW) Electronic Throttle Pedal Kit
Looking for full details, examples, and 3D fitment model downloads?
👉 See our full Universal DBW Pedal Landing Page here:
Product Summary
This universal electronic throttle pedal can be used in almost any vehicle being converted to Drive-By-Wire. The base pedal is mounted using a sheet-metal backing plate with 40mm center-to-center bolt spacing. If your vehicle uses a different bolt pattern, the pedal can be installed using a simple adapter plate.
No built-in mechanical stop.
This universal pedal ships with a pedal backstop behind the pedal pad but most likely won't be in the correct position to stop the pedal before the APP sensor reaches the end of its rotation - the U-shaped bracket welded under the pedal pad can be adapted with a bolt or set screw to give the pedal a firm end of travel.Â

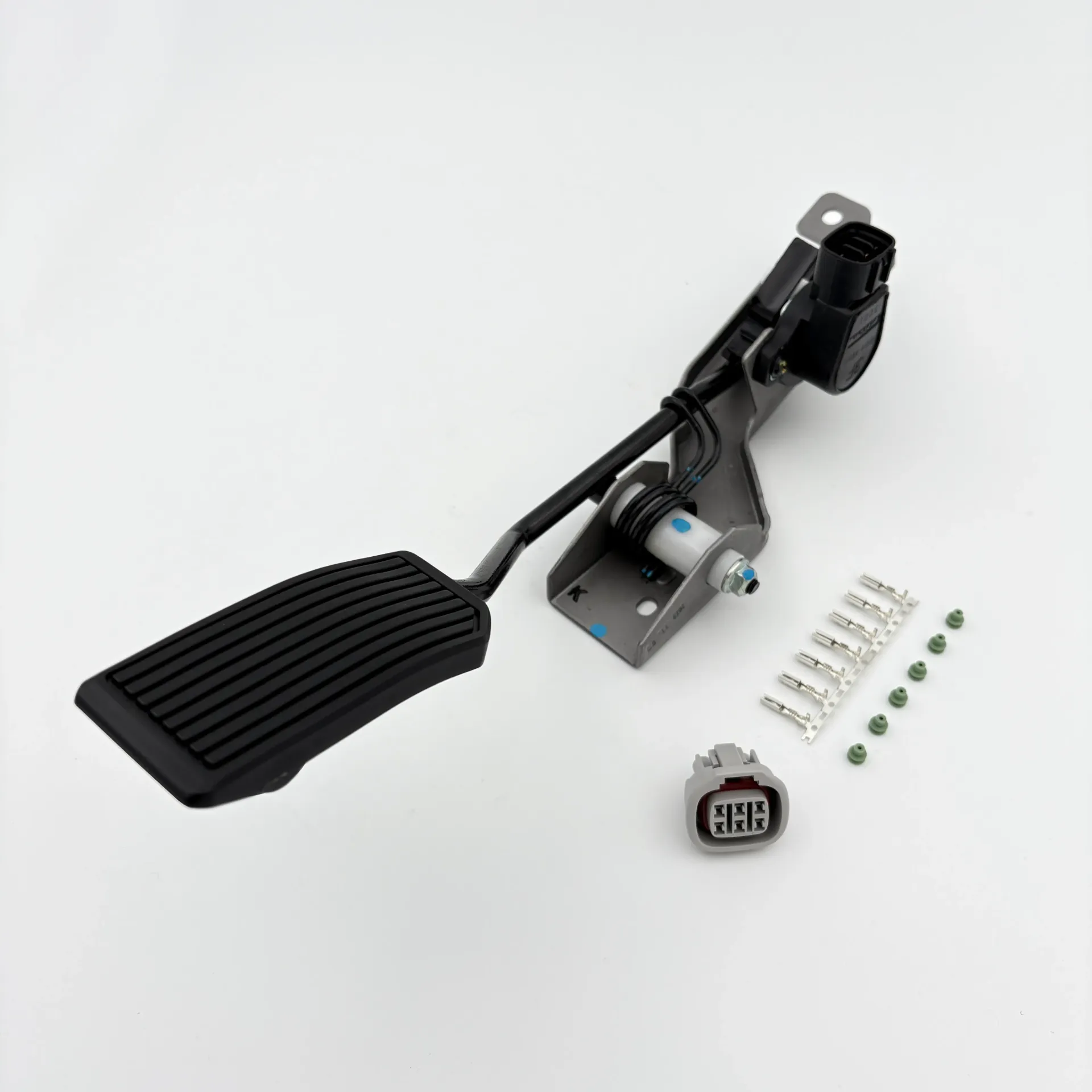

What’s Included
- 1x New Electronic Pedal Unit
- 1x New 6 Pin Position Sensor by Reputable brand AISAN (Japan) ManufacturerÂ
- 1x Wiring Plug & Terminals
Universal Fitment Notes
This pedal has been used successfully on the Vehicles below, the bolt pattern on the firewall is the same.
- Nissan S13 / S14 / S15 / 240SX (LHD & RHD)
- Nissan Skyline R32 / R33 / R34
- Nissan Laurel
- Nissan Cefiro
- Nissan 350Z
- Toyota MR2
- …and many other platforms.
Customer builds (custom bolt pattern / adapter plate fitted)
- Morgan Plus 8 (1986)Â - blog post coming.
- Chevrolet Bel Air (1957) dragster build
If the pedal pad position needs to match factory position, see the landing page above for adapted pedal and custom rod solutions.
$Â 215.00
$Â 215.00
(Tax excluded)
