Universal Drive-by-Wire Pedal: A Flexible Solution for All Builds
Designed to fit a wide range of vehicles like Nissan, Toyota, Mazda, Honda, Mitsubishi, Subaru, Infinity and many more. Get all the details below on features, installs, and why it's the best universal pedal option on the market.

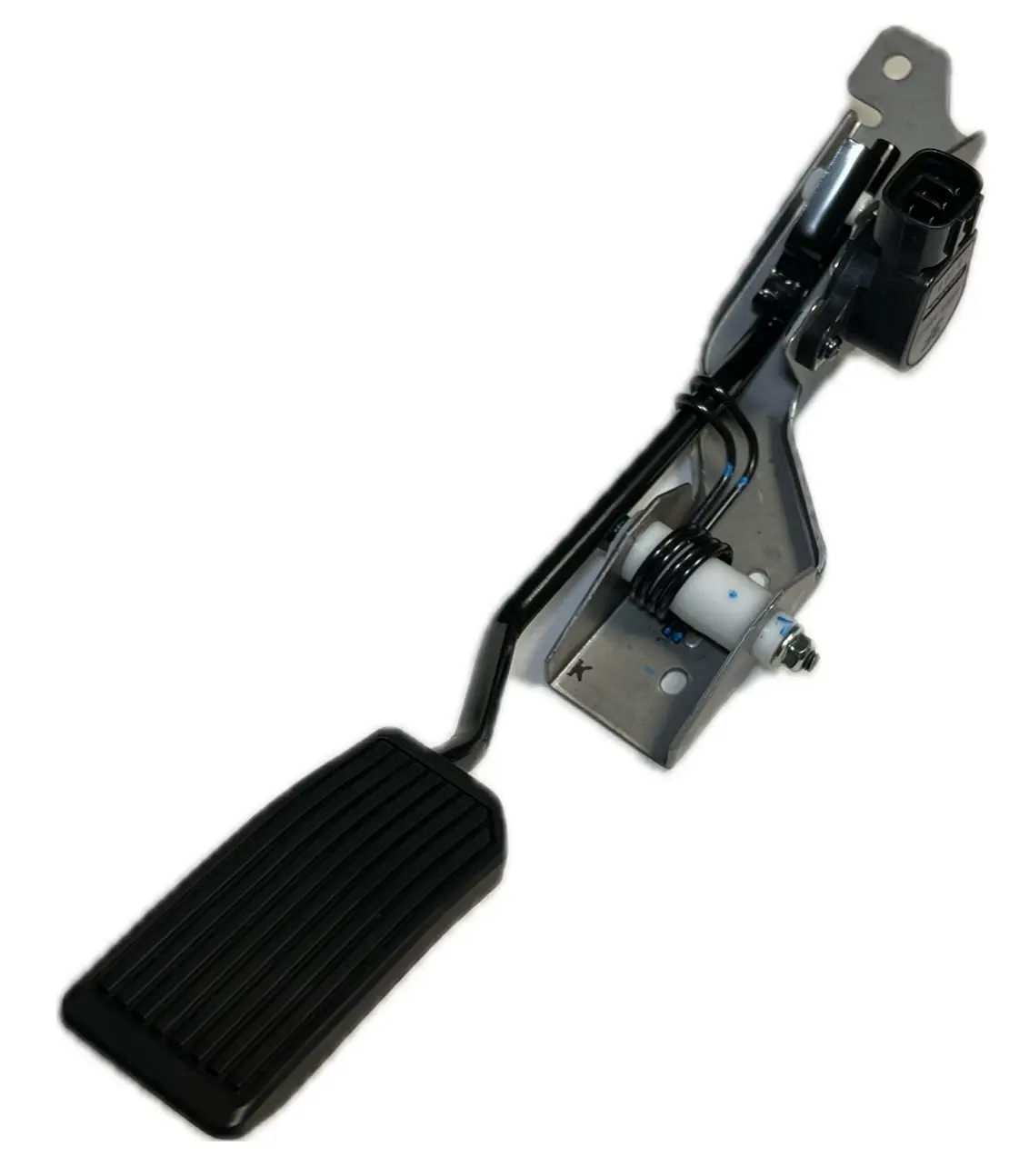

About This Pedal
This universal drive-by-wire pedal is a straightforward upgrade for modern electronic throttle body or actuator conversions. It starts with a sheet metal-formed backing plate that bolts to your chassis or firewall. The plate's flexible design lets you drill new holes or use adapter plates to match different bolt patterns - works directly on Nissan Skyline firewalls and many other makes and models. All-metal build means it's tough and modifiable without breaking the bank.

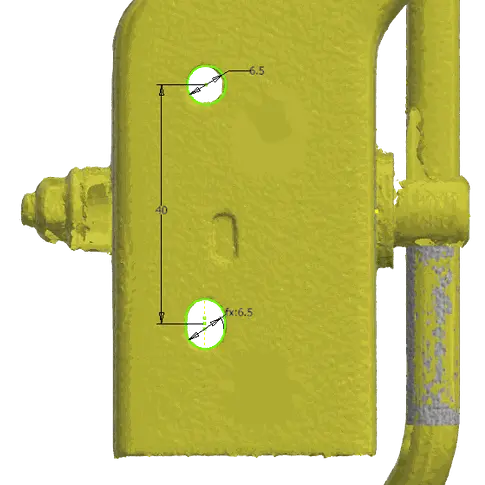

Check your factory pedal bolt hole spacing on your firewall and compare it with the 40mm centre to centre spacing of our universal solution.
Validate fitment with our free 3D Model avaiable below.
3D Print and test fit it yourself.
Key Features
This isn't just another hyped up DBW pedal with a universal label slapped on.
It's proven in the real world by real people See what our customers have to say!
Fitment & Compatibility
Fits hundreds of vehicle makes and models such as Nissan, Toyota, Mazda, Honda, Mitsubishi, Subaru, Infinity
Mounting Flexability
One of the standout features of this pedal is how easy it is to adapt. The Folded Sheet Metal backing plate can be re-drilled or used with a custom adapter bracket between the pedal and firewall. The pedal rod is solid steel and can be trimmed and re-welded - just like we do for our adapted solutions.
All-Metal Construction
Pedal rod can be cut and reworked as needed for exact positioning of OEM Pedal Pad
Sensor Details
Every pedal uses an AISIN position sensor - a well-known Japanese OEM manufacturer - not a cheap generic sensor.
We’ve sold hundreds of these over the years and haven’t had a single failure or return. That’s something we’re proud of.
Pre-Adapter Pedal Solutions
We also produce a range of pre-adapted pedals for Nissan Skyline, Silvia, Laurel & Cefiro
Custom One Off Solutions or Scalable B2B Solutions.
We offer 3D scanning for other vehicles - we scan the factory pedal installed, overlay our DBW Pedal unit, 3D Model & Print a new rod, cut the old rod & pad off, and weld on the new metal 3D Printed Stainless Steel Rod. The same process we us with our adapted Nissan range.
AISIN Sensor Pinout
| Pin | Function | Description |
|---|---|---|
| 1 | Ground | APP 2 |
| 2 | Signal | APP 2 |
| 3 | Ground | APP 1 |
| 4 | Power | APP 2 |
| 5 | Signal | APP 1 |
| 6 | Power | APP 1 |
Proven Nissan Fitment
We already offer pedal solutions for the following Nissan models:
Trusted By Workshops
These pedals have been installed in hundreds of vehicles across NZ and overseas. Shops and builders choose them because they work, they’re reliable, and they feel right.
I’ve tried a few different e-throttle options over the years, but the IEE electronic throttle pedal is the only one we use now. They’re well made, fit like factory, and I haven’t had a single issue with one to date. Stefan has done a great job matching each pedal to suit whatever chassis you’re working on. Best of all, they’re made right here in NZ!
This pedal is super easy to install as it is a plug and play kit and still fits the factory pedal pad, which also means you can easily upgrade to the better-looking aluminum pad from Nissan. This gives you a nice factory look and good pedal feel with the original position. With the supplied connector wiring is also an easy task to do and also the calibration with your aftermarket ecu is done in seconds.
Overall, a very neat solution to convert your Skyline to a DBW setup.
IEE pedals have always been nice and simple. We bolt them into all our DBW builds, and they never disappoint - delivering that factory cable feel.
Individuals That Trust Our Pedals
Cole McKnight
I would 100% recommend this product to anyone doing a drive by wire conversion in just about anything, seems like it'd be very easy to install and adapt to other chassis.
Discover moreTop questions answered
In this section, you can address common questions efficiently.
Yes. The backing plate is designed so you can bolt it directly to many chassis or easily drill/adapter-plate it to match your firewall bolt pattern.
Every pedal uses a genuine AISAN 6-pin position sensor - the same manufacturer used by major Japanese OEMs. No cheap copies.
Yes. Most customers specifically mention how natural and responsively the dual return springs feel and return the pedal in use - very close to a factory cable system.
You can bend, trim, or re-weld the steel rod - or use one of our adapted solutions that come with a custom 3D metal printed rod designed to match your factory pad position.
Yes - we offer a free 3D model so you can 3D print and trial-fit the pedal in your car before committing. Go to the top of the page to request your 3D Model.
