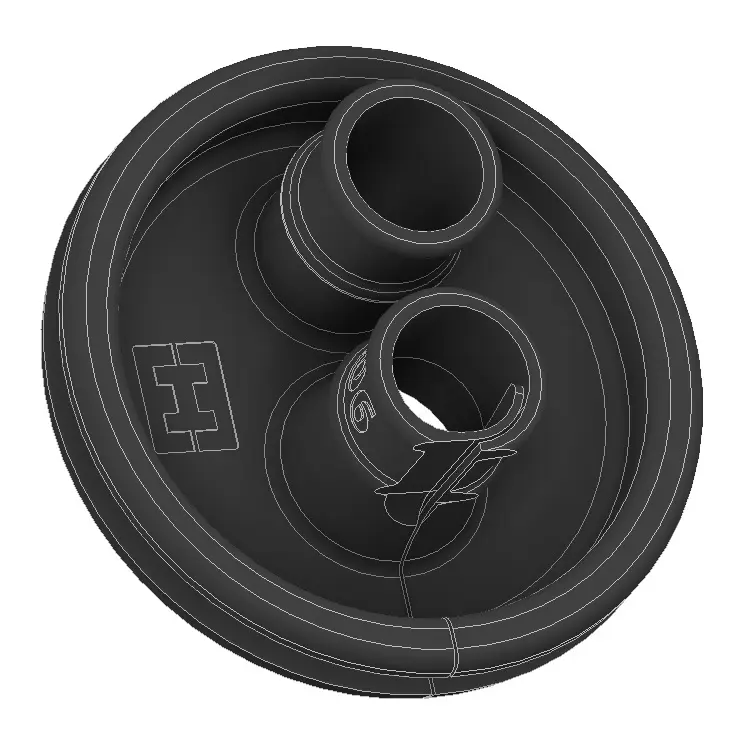

Sleeved Wiring Grommet 85mm OD x 20mm ID x 6mm ↧ With Battery Cable Hole

Our 3D Printed flexible grommets have a unique design, the split allows users to install the grommet without removing the wiring harness, simply take your new split grommet and expand it enough to place over the wiring harness first, then press the panel groove part of the grommet into the location it is being fitted to until satisfied with the fitment and orientation, the grommet features a rounded end so a cable tie can be fitted to secure the harness inside the sleeved end tightly.

The Sleeved ends of these grommets are made to have 2mm of available contraction & expansion.

Dimensions A - B - C

A - 85mm ( HOLE Diameter of chassis or panel )

B - 18mm ( Sleeve diameter CONTRACTED state )

B - 20mm ( Sleeve diameter RESTING state )

B - 22mm ( Sleeve diameter EXPANDED state )

C - 6mm ↧( DEPTH / THICKNESS of chassis or panel )

Chassis which this grommet suits

Model & Location : S13 Silvia, Drivers side wheel well leading into cabin
